Process Templates

The Process Template query is used to fetch information about configured Process Templates in Kyriba.

Step 1: Select Query Type

Select the desired Query Type from the Kyriba Master Data section and optionally specify a name and output destination in the top part of the Options page.

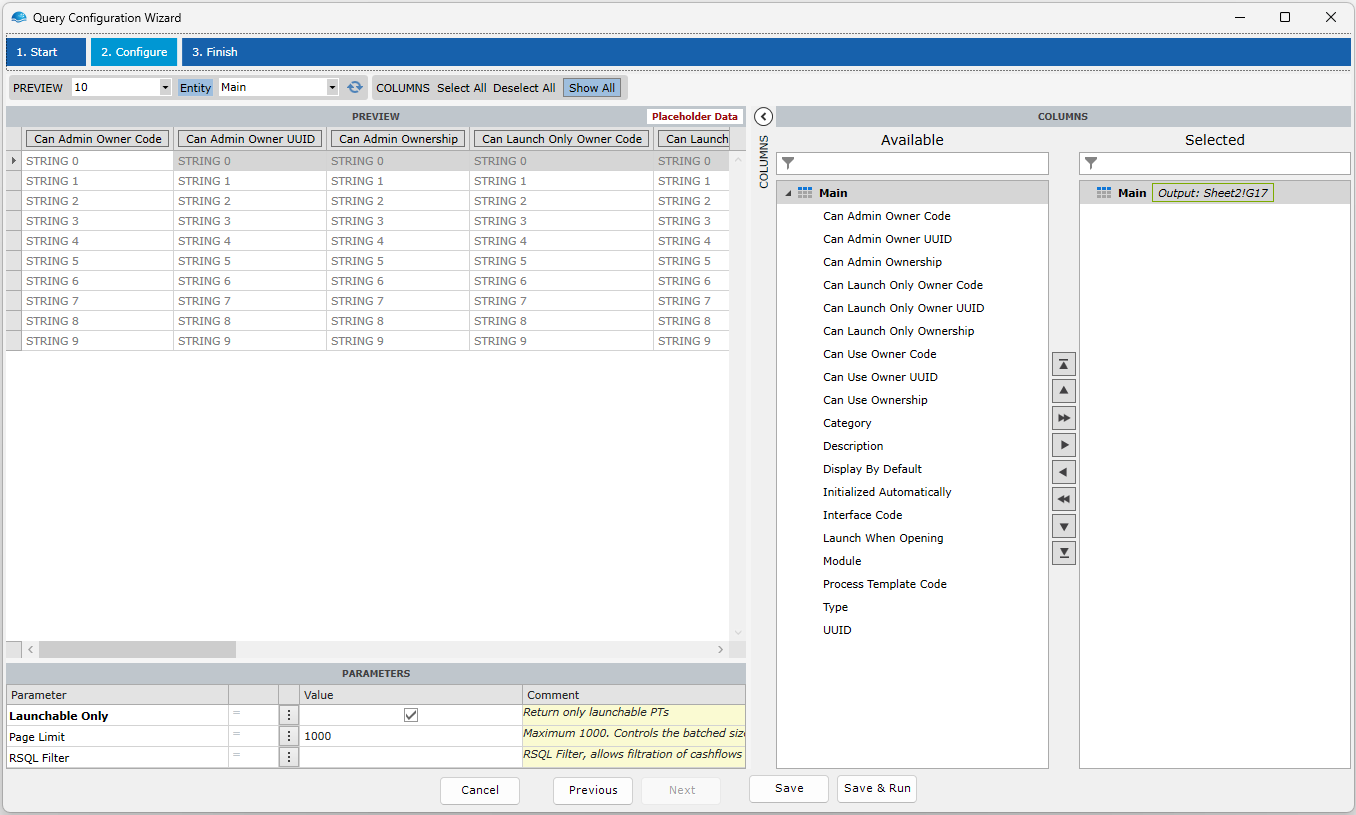

Step 2: Configure the Query

The second step brings up the Configuration pane, which allows you to both configure the query parameters and select what output to include in the query.

The following two subsections describes these steps in more detail.

Configure Query Parameters

Query parameters are available in the bottom left section of the configuration pane and allows you to filter data based on the specified parameter values. The available query parameters varies between the query types but commonly include:

• Launchable Only: Filters whether or not to only return process templates configured as Launchable.
• RSQL Filter: Allows conditional filtration of returned data, supporting logical operators such as OR and AND. See the section below for details on the RSQL Filter syntax.
• Page Limit: A technical parameter that determines the data batch size. The default and maximum allowed value is 1000 but can be lowered if needed.

📘

RSQL Filter Syntax

Returned data can be filtered based on the column values in RSQL expressions consisting of comparing and logical operators. The fields which can be used in the filter depends on the query type and not all fields supports filtering.

The following RSQL comparing operators are supported:

• == Evaluates to true if the attribute is equal to the value.
• != Evaluates to true if the attribute is not equal to the value.
• =in= Evaluates to true if the attribute exactly matches any of the values in the list.
• =out= Evaluates to true if the attribute does not match any of the values in the list.
• ==ABC* Similar to SQL like 'ABC%.
• ==*ABC Similar to SQL like '%ABC.
• ==*ABC* Similar to SQL like '%ABC%.
• =lt= Evaluates to true if the attribute is less than the value.
• =gt= Evaluates to true if the attribute is greater than the value.
• =le= Evaluates to true if the attribute is less than or equal to the value.
• =ge= Evaluates to true if the attribute is greater than or equal to the value.

Logical Operators: RSQL expression is composed of one or more comparisons, related to each other with logical operators:

• ; Logical AND
• and Logical AND
• , Logical OR
• or Logical OR

Argument can be a single value, or multiple values in parenthesis separated by comma. Value that doesn’t contain any reserved character or a white space can be unquoted, other arguments must be enclosed in single or double quotes.

For example, the syntax to only return entities created from 2020-01-01 where the Address Country is either SE, FR or US:

openingDate =ge= 2020-01-01;address.contry.code=in=(SE,FR,US)

Configure Output

The COLUMNS section in the rightmost view allows you to choose what fields to include in the query result.

The left-hand side contains a list of available fields while the right-hand side contains a list of selected fields. In both sides, fields are grouped according to the main entity and potential subentities, which can be collapsed and expanded.

There are several ways to select and deselect fields:

• Double-clicking on the field
• Dragging and dropping
• Using the left & right arrows icons in the middle between the two grids
• Using Keyboard Shortcuts

The added fields may be sorted by using the up & down arrow icons in the middle between the two grids or by dragging and dropping them in place.

Step 3: Finalize the Query

Choose Save to save the query without running it, or Save & Run to save and execute the query. If query output is defined then you will see your output in Excel.
